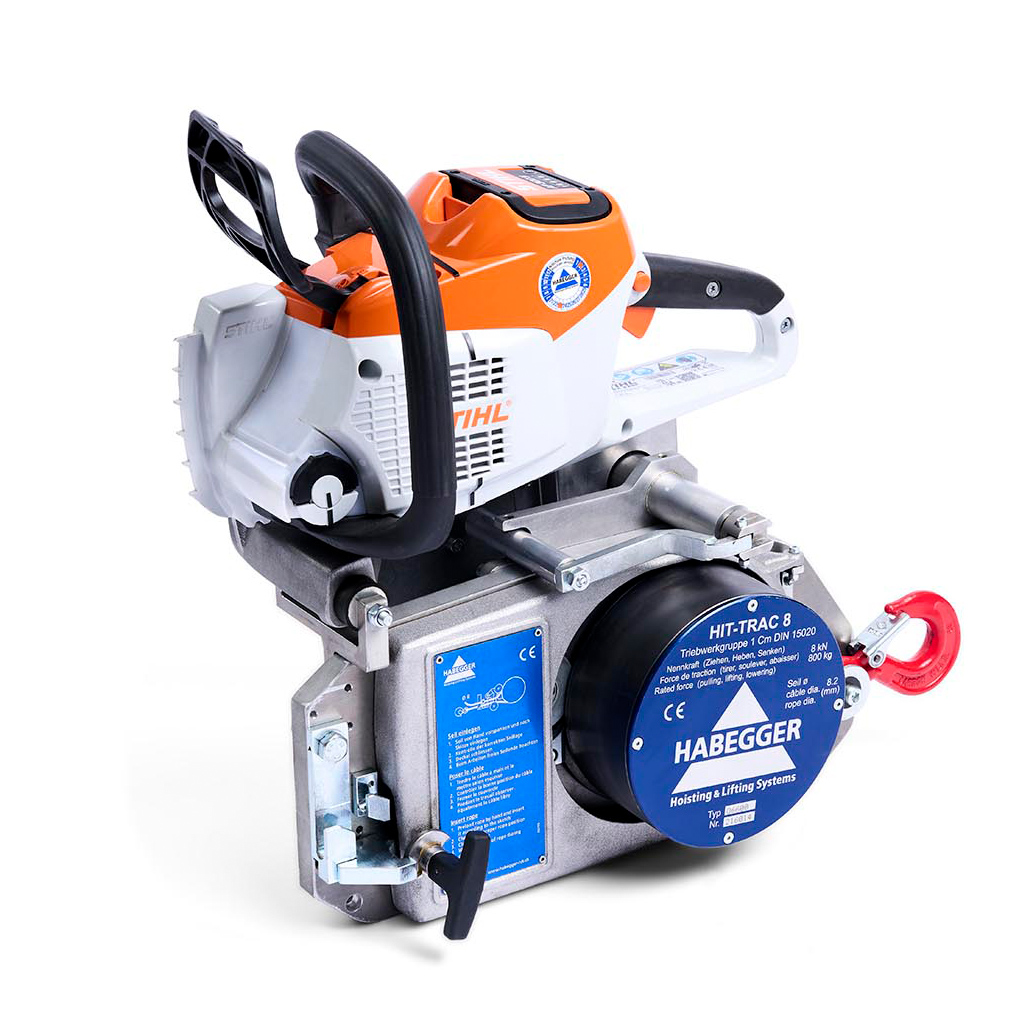

HABEGGER HIT-TRAC 8 A

The Habegger HIT-TRAC 8A is a powerful and handy motor hoist, powered by a Stihl battery electric motor.





Leaflet



Technical Data HIT-TRAC 8 A
Rated force (pulling, lifting, lowering) 800 kg
Overload protection by sliding clutch at approx. 20% overload
Rope speed 8 m/min
Rope length unlimited
Weight incl. engine 28,5 kg
Rope diameter 8,2 mm
Effective rope breaking load 50 kN
Drive motor STIHL MSA 220 C
Power 1,8 kW
Article no. (unit without rope)
06600
Only available with engine, since the engine is specially produced
and converted for our HIT-TRAC 8 A.





 Wire ropes on reel
Diameter
Weight
8,2 mm
0,25 kg/m
Length in m Article no.
20 07298
25 07299
30 07303
40 07304
50 07305
60 07306
70 07307
80 07308
90 07309
100 07310
150 07311
200 07582
300 07583
 Wire ropes without reel
Diameter
Weight
8,2 mm
0,25 kg/m
Length in m Article no.
10 07577
15 07578
20 07579
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request.
