HABEGGER wire rope reels and rope coiler

Leaflet

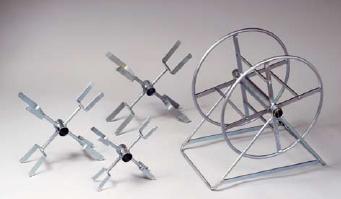

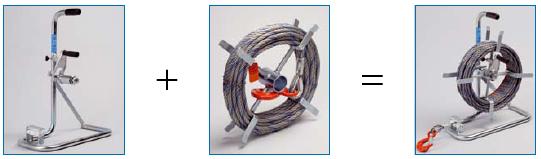

Wherever hauling ropes are used, wire rope reels are also to be found. The special hub on the HABEGGER reel actually makes reeling in and out incredibly easy. For relatively long ropes, the reels are combined with the practical rope coiler that is equipped with a hub brake and crank handle. This means the rope can be wound in effortlessly. As a result, the rope windings can no longer lift off or spring up uncontrollably. The HABEGGER reel saves time and reduces wear and tear on the wire rope. For long ropes, choose the reel on a trolley block.



Name
Article no.
Weight
max. rope length with rope Ø mm
6,4

8,2
8,4
11,2

16,2

Reel size I
00280
1,3 kg
80 m
 60 m
25 m
-
Reel size II
00281
2,3 kg
150 m
 120 m
60 m
25 m
Reel size III
00282
3,2 kg
250 m
 200 m
130 m
50 m
Rope coiler for reel,
size I-III
00190
5 kg
-
 -
-
-
Reel with block, on trolley
00180
15 kg
1200 m
 600 m
300 m
200 m
