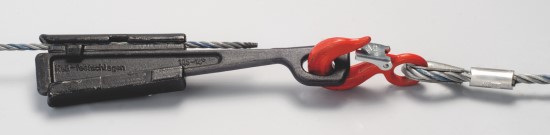

HABEGGER-Accessories: CONI-KLAM
wedge-type clamping tool

alt

CONI-KLAM wedge-type clamping tools are simple and practical devices for clamping and catching the wire ropes when pulling. The rope is held by clamping jaws that can be moved in parallel. CONI-KLAM clamping tools are self-tensioning, the holding force is always set in accordance with the pulling force. The mechanism is released by knocking back the wedge.

Article no.

Type

Rope Ø

SWL - safe
working load
Weight

060.478.002
EC 10
  5 - 10 mm
1000 kg
1,2 kg
060.478.003
EC 14
10 - 14 mm
2000 kg
2,6 kg
060.478.004
EC 21
14 - 21 mm
3200 kg
5,4 kg
