HABEGGER rope deflecting rollers



Rope deflecting rollers
Type
Single
Double
Triple

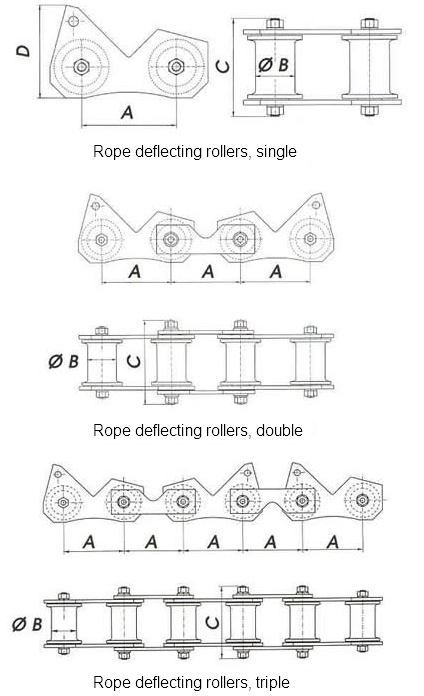

Dimensions





A
120 mm
120 mm
120 mm
B Ø
50 mm
50 mm
50 mm
C
125 mm
147 mm
147 mm
D
117 mm
117 mm
117 mm
Weight
2,0 kg
4,2 kg
6,5 kg
Article no.
01030
01032
01033


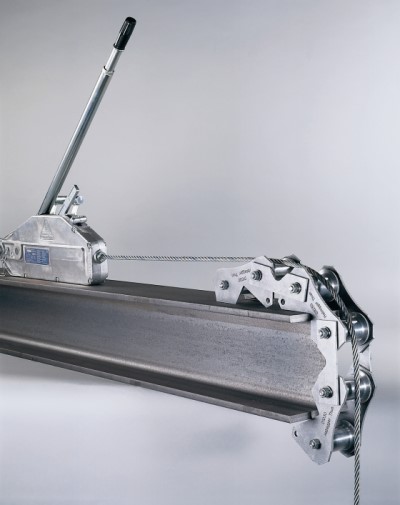

rope deflecting rollers

Permitted load: A single roller can be loaded with up to 12 kN, i.e. with a pulling force of 16 kN,
it is sufficient to have two rollers to guide the wire around a 90° corner.

alt

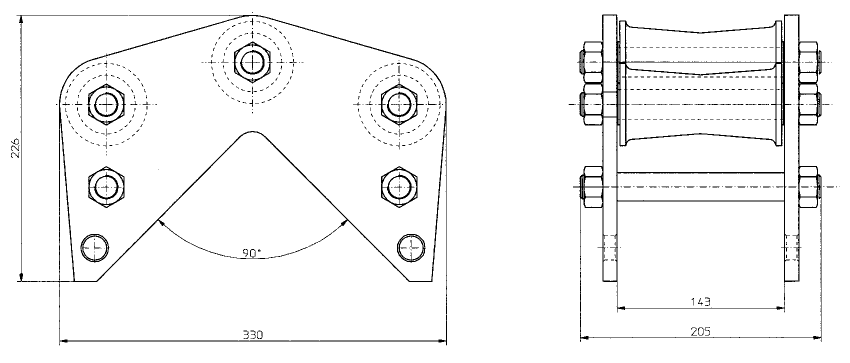

Rope deflecting rollers 90°
Article no.
01071
Rope Ø
max. 16 mm
Wire rope hoist
max. 80 kN
Weight
15 kg
 alt
