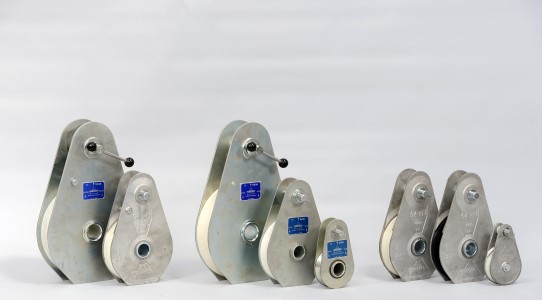

HABEGGER rope pulleys
|
|
 Leaflet
|
|
|
|
|
Rope pulleys aluminium
side flange can be rotated open
|
Type
|
Load
capacity
|
max.
rope Ø |
no. of
rollers
|
Bearing
|
Weight
kg |
Article no.
|
|
| AL-A 32 kN |
3200 kg |
11 mm |
1 |
plain bearing |
1,2 |
01740 |
Dimension sheet |
| AL-A 64 KN |
6400 kg |
16 mm |
1 |
plain bearing |
4,8 |
01840 |
Dimension sheet |
| AL-A 64 kN |
6400 kg |
16 mm |
1 |
ball bearing |
5,0 |
01840/K |
|
| AL-A 64 kN |
6400 kg |
11 mm |
2 |
plain bearing |
5,8 |
01840/2 |
Dimension sheet |
|
| |
|
Rope pulleys steel
side flange can be rotated open
|
Type
|
Load
capacity
|
max.
rope Ø |
no. of
rollers
|
Bearing
|
Weight
kg |
Article no.
|
|
| ST-A 32 kN |
3200 kg |
11 mm |
1 |
ball bearing |
3,3 |
01871 |
Dimension sheet |
| ST-A 64 KN |
6400 kg |
16 mm |
1 |
ball bearing |
8,0 |
01889 |
Dimension sheet |
| ST-A 128 kN |
12800 kg |
20 mm |
1 |
ball bearing |
20,5 |
01909 |
Dimension sheet |
| ST-A 128 kN |
12800 kg |
16 mm |
2 |
ball bearing |
23,0 |
01910 |
Dimension sheet |
|
| |
| |
|
Accessories for rope pulleys
|
|
Anchorage bracket
steel, can be used with all models
in the AL-A 64 kN series
Article no. 01854
Weight: 2,2 kg
|
Safety load hook
| Load capacity |
for rope pulley
|
Article no.
|
| 3200 kg |
AL-A/ST-A 32 kN |
4352.3200.0 |
| 8000 kg |
AL-A/ST-A 64 kN |
4352.8000.0 |
Folding splint pin
for locking the bolt
Article no. 2202.1001.1
|
|
|
What are rope pulleys used for?
|
|
With pulleys, it is possible to move a multiple of the load using a wire rope hoist with the same rated force. This is achieved without using a thicker rope because the rope only has the single force applied to it. The rope pulleys and their anchorages, on the other hand, must be designed to cope with the total load.
|
|
|
|
|

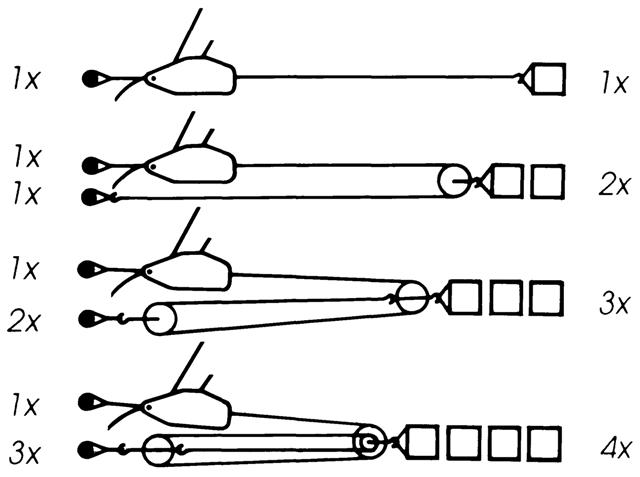

Pulling
|

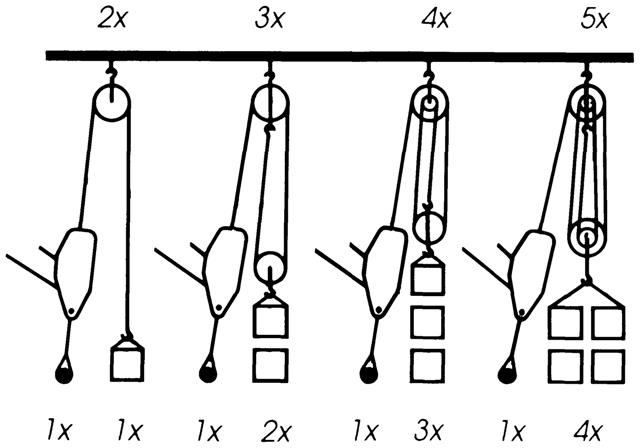

Lifting / Lowering
|
