HABEGGER HIT-10
The all-rounder with the excellent ratio between pulling force and weight.
|
|
 Leaflet
Dimension sheet
|
|
|
Technical Data
|
HIT-10 |
| Rated force (pulling, lifting, lowering) |
1000 kg |
| Overload protection at |
1500 kg |
| Weight without rope |
6,2 kg |
| Rope diameter |
8,4 mm |
| Effective rope breaking load |
5000 kg |
| Rope feed per double stroke |
55 mm |
| Load on lever at rated force |
30 kg |
|
|
Basic equipment
|
Article no. |

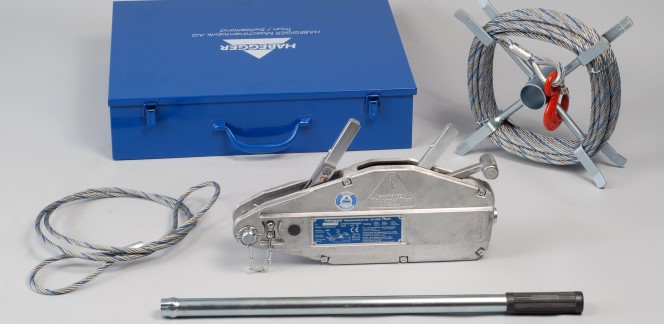

Unit with lever tube,
20 m rope on reel, 2 m strap
complete with case |
00698 |
Unit with lever tube,
20 m rope on reel |
00700 |
Unit with lever tube,
without rope |
00699 |
|
- Light alloy housing
- Anchorage bolts secured
- Overload protection by shear pin
- Exchangeable shear pins in jaw opening lever
- Case available
|
|
Wire ropes on reel
Diameter
Weight
|
8,4 mm
0,25 kg/m |
| Length in m |
Article no. |
| 10 |
01011 |
| 15 |
01012 |
| 20 |
01013 |
| 25 |
01014 |
| 30 |
01015 |
| 40 |
01016 |
| 50 |
01017 |
| 60 |
01018 |
| 70 |
01021 |
| 80 |
01022 |
| 90 |
01023 |
| 100 |
01024 |
|
Wire ropes without reel
Diameter
Weight |
8,4 mm
0,25 kg/m |
| Length in m |
Article no. |
| 5 |
01001 |
| 10 |
01002 |
| 15 |
01003 |
| 20 |
01004 |
|
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request.
|
