HABEGGER HIT-16
The professional wire rope hoist with a range of uses. Powerful yet compact.
|
|
 Leaflet
Dimension sheet
|
|
|
Technical Data
|
HIT-16 |
| Rated force (pulling, lifting, lowering) |
1600 kg |
| Overload protection at |
2400 kg |
| Weight without rope |
12 kg |
| Rope diameter |
11,2 mm |
| Effective rope breaking load |
8000 kg |
| Rope feed per double stroke |
60 mm |
| Load on lever at rated force |
35 kg |
|
|
Basic equipment
|
Article no.
|

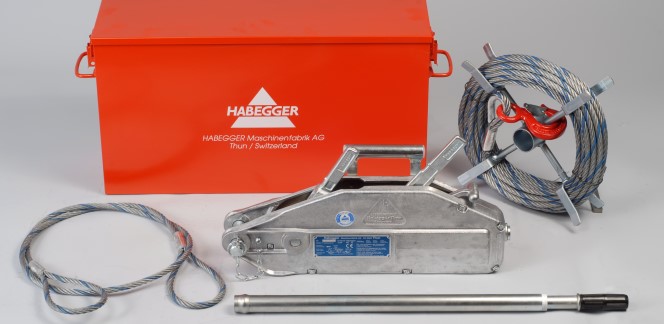

Unit with lever tube,
20 m rope on reel, 2 m stap
complete with storage case |
00798 |
Unit with lever tube,
20 m rope on reel |
00800 |
Unit with lever tube,
without rope |
00799 |
|
- Light alloy housing
- Anchorage bolts secured
- Overload protection by shear pin
- Exchangeable shear pins in carrying handle
- Expansion for hydraulic drive
- With carrying handle
- Lever tube can be pulled out
- Storage case available
|
|
Wire ropes on reel
Diameter
Weight |
11,2 mm
0,41 kg/m |
| Length in m |
Article no.
|
| 10 |
01111 |
| 15 |
01112 |
| 20 |
01113 |
| 25 |
01114 |
| 30 |
01121 |
| 40 |
01122 |
| 50 |
01123 |
| 60 |
01124 |
| 70 |
01131 |
| 80 |
01132 |
| 90 |
01133 |
| 100 |
01134 |
|
Wire ropes without reel
Diameter
Weight |
11,2 mm
0,41 kg/m |
| Length in m |
Article no.
|
| 5 |
01101 |
| 10 |
01102 |
| 15 |
01103 |
| 20 |
01104 |
|
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request.
|
