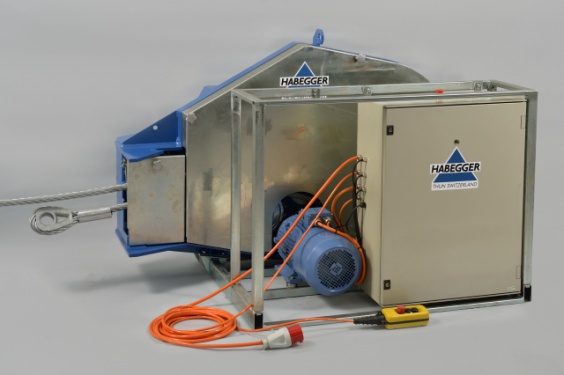

HABEGGER HIT-TRAC 128 E

The professional wire rope pulling machine for pulling loads up to 12,8 tonnes directly.

hit-trac 128

Leaflet

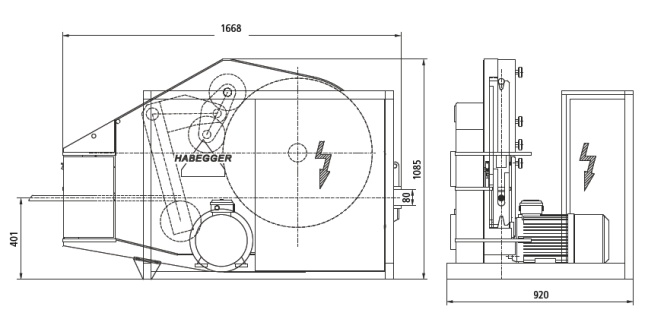

Dimension sheet



Technical Data HIT-TRAC 128 E
Rated force (pulling, lifting, lowering) 12800 kg
Overload protection by thermocouple
Rope speed max. 2,5 m/min.
Rope length unlimited
Weight incl. engine 860 kg
Rope diameter 28 mm
Effective rope breaking load 640 kN
3-phase AC Drive motor 50 Hz / 400 V, 15,1A
Power 7,5 kW
Intermittent duty 100 %
HIT-TRAC 128 E without rope Article no.
Standard machine 08400
with variable rope pulling speed on request
with intermittent duty 100 % on request
Tensioning rope Ø 28 mm compacted on request


hit-trac 128 masse
