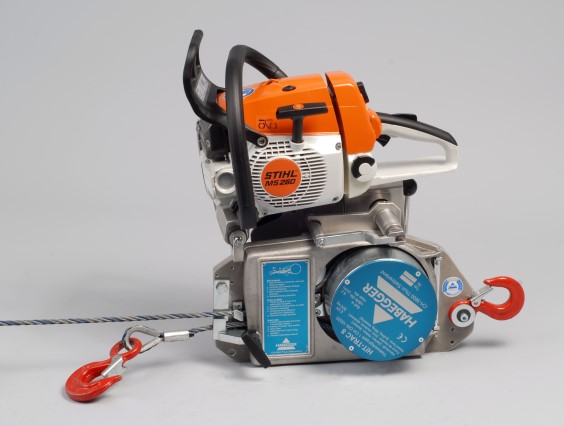

HABEGGER HIT-TRAC 8 B
A new and super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope length.
|
|
 Leaflet
Dimension sheet
|
| |
| Technical Data |
HIT-TRAC 8 B |
| Rated force (pulling, lifting, lowering) |
800 kg |
| Overload protection by sliding clutch |
at approx. 20% overload |
| Rope speed |
about 10 m/min |
| Rope length |
unlimited |
| Weight incl. engine |
30 kg |
| Rope diameter |
8,2 mm |
| Effective rope breaking load |
50 kN |
| Drive motor |
STIHL 260 |
| Power |
2,6 kW |
Article no. (unit without rope)
|
06313 |
|
Only available with engine, since the engine is specially produced
and converted for our HIT-TRAC 8 B.
|
Wire ropes on reel
Diameter
Weight |
8,2 mm
0,25 kg/m |
| Length in m |
Article no. |
| 20 |
07298 |
| 25 |
07299 |
| 30 |
07303 |
| 40 |
07304 |
| 50 |
07305 |
| 60 |
07306 |
| 70 |
07307 |
| 80 |
07308 |
| 90 |
07309 |
| 100 |
07310 |
| 150 |
07311 |
| 200 |
07582 |
| 300 |
07583 |
|
Wire ropes without reel
Diameter
Weight |
8,2 mm
0,25 kg/m |
| Length in m |
Article no. |
| 10 |
07577 |
| 15 |
07578 |
| 20 |
07579 |
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request. |
| |
